Product Details:
|
| Highlight: | High Speed Narrow Edge Banding Machine,HD855J Narrow Edge Banding Machine |
||
|---|---|---|---|
Minimum board size: 150×40mm (four-side edge banding with tracking), 120×40mm (long-side edge banding).
Specially designed pre-milling mechanism for narrow end heads of workpieces, capable of milling narrow board end heads of ≥40mm.
The frame adopts a heavy-duty structure, processed by CNC to ensure the flatness of the table.
The distance between two sets of guide rail columns is densified, ensuring smoother board transportation and better edge scraping effect.
Independent motor control for glue application and edge pressing to avoid the phenomenon of "less glue at the beginning and more glue at the end" of boards.
Gluing system 1: upper PUR gluing system;
Gluing system 2: EVA gluing system
| Item | HD855J | Item | HD855J |
| Electrical lifting | √ | Thickness of panel | 10-60mm |
| Total power | 33kw | Length of panel | ≥120mm (with corner rounding ≥150mm) |
| Dimension | 10450x1000x1800mm | Width of panel | ≥40mm |
| Feeding speed | 16m-20m-23m/min | Working pressure | 0.6Mpa |
| Thickness of tape | 0.4-3mm | Min. Size of panel | 150×40mm (four-sided edge banding, with tracking capability) 120×40mm (edge banding on the long side) |
Fully intelligent control system

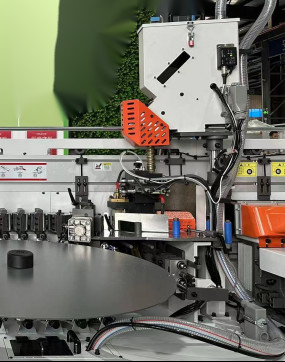

Pre-Milling
PUR Gluing system
Glue Application Unit Two: Hot Melt Adhesive Application System + Rapid Melting + Automatic Glue Extraction Machine
Five-Roller Pressing
Two rails three motors end cutting

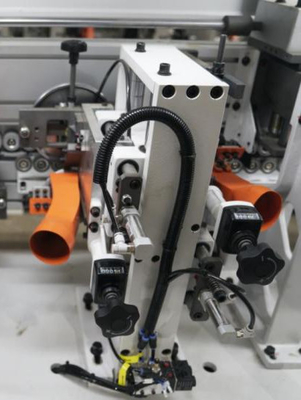

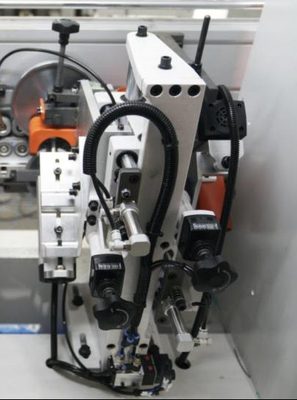

Four-Blade High-Speed Corner Rounding
narrow edge scraping
Wire Breakage Mechanism + Flexible Edge Scraper + Cleaning Agent Device
