Product Details:
|
| Highlight: | Six-axis CNC Drilling Center,Factory-HB610i CNC Drilling Center |
||
|---|---|---|---|

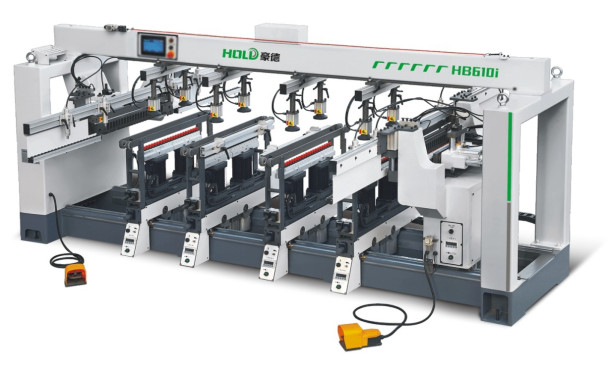

Technical info:HB610i
l The rack adopts an elongated gantry structure, which is robust and stable.
l Processing on three sides (bottom holes and side holes) simultaneously.
l Double-row vertical drilling, providing more stable hole punching.
l Electronic calculator with intelligent display of drilling row distribution, making operation simpler
Technical data:HB610i
| The maximum processing width (X-axis) | 2450mm |
| The maximum spacing between horizontal drilling axes | 640mm |
| The minimum spacing between vertical drilling rows | 128mm |
| The maximum workpiece thickness | 78mm |
| The maximum drilling depth for horizontal drilling | 40mm |
| The maximum drilling depth for vertical drilling | 70mm |
| Drilling spindle speed | 2800rpm(50Hz) |
| Vertical drill bank power | 1.1kw*2+1.5kw |
| Horizontal drilling row power | 1.5kw |
| Working air pressure | 0.6-0.8Mpa |
| Mechanical dimensions | 3850*2500*1800mm |
