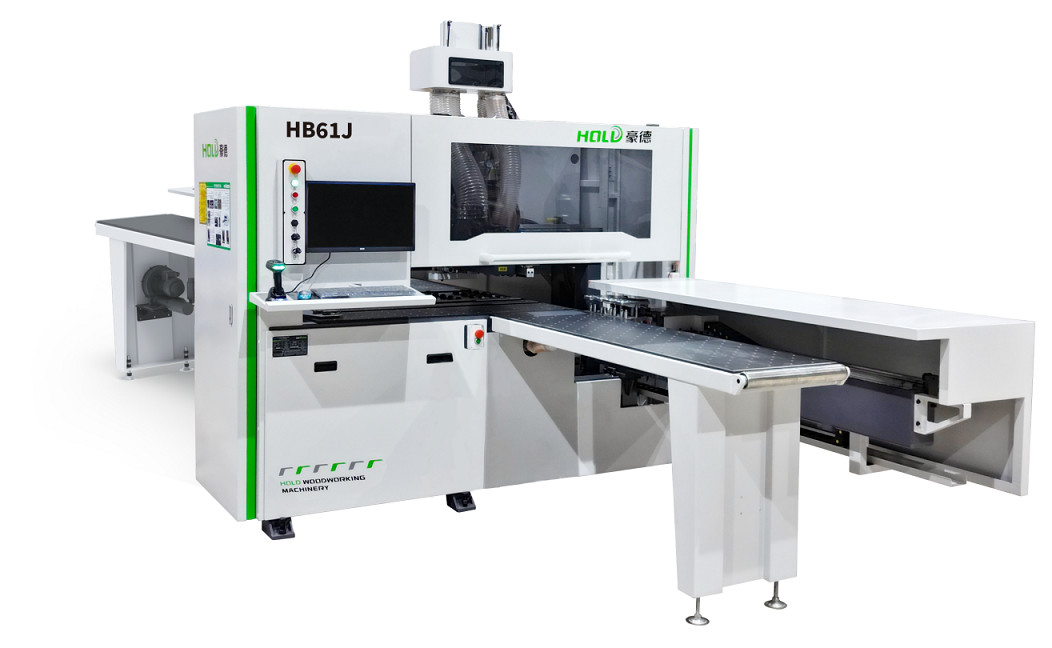

CNC Boring Machine HB61J

CNC Boring Machine HB61J
CNC Boring Machine HB61J

Large Image :  CNC Boring Machine HB61J

Product Details:
Place of Origin: Guangdong China
Brand Name: HOLD
Certification: CE
Model Number: HB61J
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Poly Wrapping Or Wood cases
Delivery Time: 45 Days
Payment Terms: LC/ TT
Supply Ability: 10 Set / Month

CNC Boring Machine HB61J

Description
After-sales Service Provided: Video Technical Support,Online Support Control System: PLC Control, CNC, Full Automatic
Voltage: 380V/ 50Hz; 380V/ 60Hz; 400V/60Hz; 415V/50Hz Workpiece Max. Width: 1200mm
Workpiece Min. Width: 30mm Workpiece Max. Length: 3300mm
Workpiece Min. Length: 70mm Workpiece Min. Thicknes: 9mm
Workpiece Max. Thickness: 55mm Upper Vertical Drill: 10
Horizontal Drill: 8 Bottom Vertical Drill: 9
Total Power: 14.2kw Overall Dimensions: 2950X2290X2450mm
Spindle Power: 3.5kw
Highlight:

China CNC Boring Machine 4280mm

,

CNC Boring Machine For Sale 4280mm

,

CNC Line Boring Machine 6-Side

CNC 6-Side Boring Machine HB61J



Advantage

  • Patented Technology: The upper spindle is equipped with both a horizontal saw blade and a vertical milling cutter, enabling the processing of light grooves and light strip grooves.
  • Enhanced Dust Extraction: An additional dust extraction unit is positioned in the center of the upper drilling unit to effectively remove dust from the panel surface.
  • Small Panel Processing: Supports a minimum panel size of 70mm × 30mm.
  • Unique Feeding Clamp Design: The middle clamp features an opening, allowing small panels to be drilled close to the clamp position. A single clamp with four positioning columns ensures greater stability when machining narrow panel pieces.
  • Dedicated Air Supply for Drilling Unit: A booster pump provides an independent air supply to the drilling unit, ensuring more consistent hole depths.
  • Intelligent Upper Positioning System: Automatically centers angle deviations, ensuring accurate positioning even for curved or fan-shaped panels.
  • Stable Pressure Air Tank: Maintains stable working pressure for consistent performance.
  • Intelligent Side Positioning System: Ensures precise panel alignment during processing.
  • Seamless Integration with Cutting Software: Compatible with various nesting and cutting software for optimized workflow.
  • Automatic Dimension Marking: Integrates with cutting software to display edge banding thickness information on all four sides, making panel placement more convenient.
  • Simulation Function: Allows previewing of machining actions to prevent errors and misprocessing.
  • Big Data Analysis: Tracks drill bit usage and notifies operators when a drill bit reaches its preset usage limit.
  • Processing Statistics Function: Records QR code information for each panel, including start time, end time, duration, and panel handling intervals to support performance management.
  • Clear Distinction Between Processed and Pending Files: Ensures visibility of unprocessed panels to prevent missed operations.
  • Multi-Axis CNC System & Multi-Channel Technology:
    • Scans multiple queued panels while processing a workpiece, reducing scanning time.
    • Multi-channel control enables simultaneous processing and unloading; as soon as a panel is released from the clamp, the system quickly returns to the loading position for the next job.
  • Remote Service and Networking:
    • Supports remote machine updates and backups.
    • Adopts bus communication technology for detailed alarm notifications.

                  Seamlessly integrates with MES systems for alarm interfacing.





Model HB61J
Vertical drilling tool 10(Top )+9( Bottom )
Horizontal drilling tool 4(X axis)+4(Y axis)
Milling Moter power 3.5kw
Min.width of work-piece 50mm
Max.width of work-piece 1200mm
Min.length of work-piece 250mm
Max.length of work-piece 2440mm
Max.thickness of work-piece 48mm
Min.thickness of work-piece 12mm
X axis 130m/min
Y axis 100m/min
Z axis 30m/min
U axis 130m/min
V axis 100m/min
W axis 30m/min
A axis 60m/min
Working table height 1020mm
Total power 14.2kw
Weight 2000kg
Overall dimensions

2950X2290X2450mm






About our company



One-stop solution for

interior furniture equipment and wooden door equipment

HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.

HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.


FAQ:

1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.

2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.

3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
