|Overall Dimensions:||6400x5400x2200mm||Total Power:||26KW|
|Main Saw Power:||18.5kw||After-sales Service Provided:||Online Support|
|Voltage:||220V/380V/400V / 415V||Max. Cutting Dimension:||3180mm*3180mm|
|Condition:||New||Type:||Computer Panel Saw|
|Name:||Precision Panel Saw,panel Saw Machine||Tilting Saw Blade:||90°|
|Main Saw Blade Diameter:||400mm||Max. Cutting Thickness:||100mm|

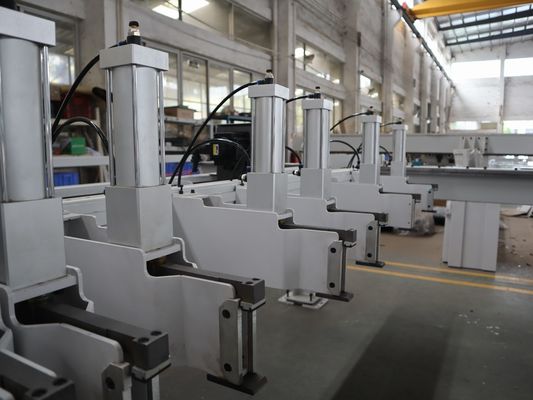

|Total Weight:||5500kg||Number Of Griper:||8 Pcs|
automated woodworking panel saw,
woodworking panel saw 150m min,
automated panel saw Computerized

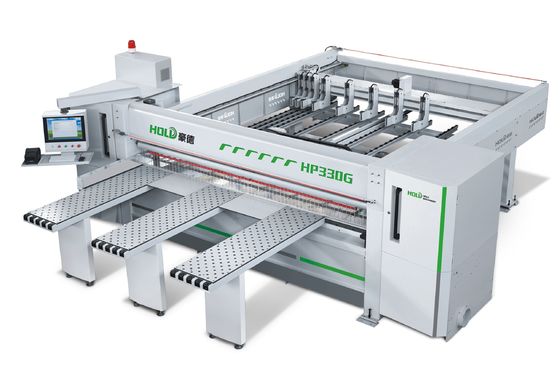

Computer Panel Saw 18.5KW Main Saw Power Cutting Wood HP330GK
Chrome coated table for long service life:
CNC beam saw works for a large amount of precise cutting:
Air floating table for no scratching on panel:
1. Automatic blade reciprocating incising saw can be used for cutting several pieces of the wood panel at presupposed width and thickness automatically and continuously.
2. Work stability to avoid after-sale maintenance problems.
3. Having the rigid heavy-duty machine frame.
4 .High speed saw carriage runs up to 100m/min.
5. CNC panel pusher driven up to 100m/min with AC servo motor.

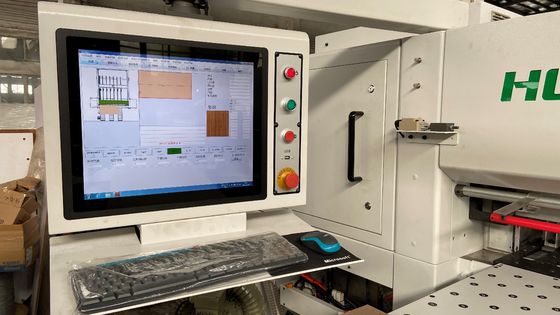

6. Optimized soft for beam saw machine is included.
7. Back loading with automatic feeding is optional .
|Product Name||Heavy duty China automatic cnc beam saw machine|
|Cutting thickness||0-100mm(120mm optional)|
|Main saw blade diameter||400mm|
|Main saw spindle diameter||60mm|
|Main saw spindle speed||3910rpm|
|Auxiliary saw shaft diameter||45mm|
|Side saw spindle speed||5100rpm|
|Sawing seat speed||5-100m/min|
|Sawing seat back speed||100m/min|
|Main saw blade motor||18.5KW|
|Scoring saw Blade motor||2.2kw|
|Sawing seat drive motor||1.5kw|
|High pressure blower motor||3HP|
|Automatic feeding system||1.5kw(AC sero motor)|
|Work holder feeding speed||5-80m/min|
|The use of air pressure||7kg/cm²|
|Work platform height||1020mm|
CNC beam saw is an updated product in the panel saw industry, with high cutting accuracy and stable cutting.
With furniture development, the rapid development of the industry, manufacturers spent huge human and financial resources on cutting plates.
The disadvantages of using the sliding table panel saw in the cutting of plates becomes more and more obvious: insufficient precision, edge collapse, fault, work injury, and other phenomena often occur, which brings obvious constraints to the development of enterprises
If want to know more about our products by video, please click the below link:
About our company
One-stop solution for interior furniture equipment and wooden door equipment
HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
